Jaltest Agricultural Diagnostic Kit

The most comprehensive coverage and functionality for Agricultural Equipment in North America. Reduce downtime, repair and maintenance related expenses with Jaltest Agricultural Equipment Software.

• Information on connectors: Jaltest informs you about which connector to use and its location on the vehicle. Location on buses by bodybuilder.
• Diagnosis: Recording and description of the errors registered on each of the control units. Automatic detection of the complete errors list on the systems integrated on the vehicle.
• Actuation of Components: Possibility of interacting and sending orders on the different systems using Jaltest: such as fan activation, cylinders cutout, compression test and operational checking of the different mechanisms, etc.
• Values Measuring: Measuring and Displaying of up to 8 values at the same time. Information on the ranges of reference values.
• Parameters: Configuration of the different parameters.
• System data: Information on the system configuration and ECU data.
• Errors clearance: Errors clearance on the control unit and turning off of failure lamps.

Protocols:

• OBD
• OBDII
• J1939
• J1708
• EURO IV
• EURO V
• RP1210

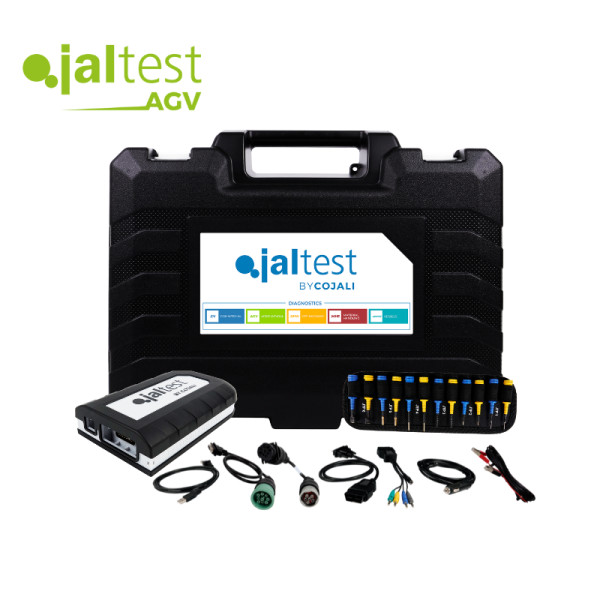

Kit includes:

• Jaltest Link RP 1210 Kit w/ Multi-Pin Set (Part #29366)
• Ag Software License w/ 1 Year of Activation (Part #29762 & 29761)
• Jaltest AGV Cable Set (Part # 29758)
• Jaltest Info Online Annual (Part # 29427)
• Training

Coverages:

• 35,000+ Diagnostic Trouble Codes -including OEM Proprietary Codes
• 40 brands of equipment & component manufacturers
• 360 Models of Components & Equipment
• 3,200+ Electronic Control Modules
• Engines
• Transmissions
• Traction Control
• Instrument Cluster, Body & Chassis Controllers
• Safety Systems
• Anti-theft & Security Systems
• Steering Systems
• Telematics Modules
• Tire Pressure Monitoring System
• Combine, Head & Tail Control Units
• PTO Systems
• Electronic Modules

Functionality

• 6,500+ Bi-Directional Testing Procedures
• 2,500+ Troubleshooting and Repair Guides linked to Diagnostic Trouble Codes
• 1,700+ Circuit Diagrams
• 15,000+ Symptom Diagnostic Troubleshooting Guides
• 8,000+ Technical Specification Data Resources (Electrical Systems)
• 1,600+ System Technical Data Specifications (Mechanical and Electrical systems)
• 2,000+ Fields for Condition Based Maintenance PM and Service Scheduling Processes
• 1,000+ Calibrations
• Jaltest Report Includes Vehicle, Operational and Diagnostic Information
